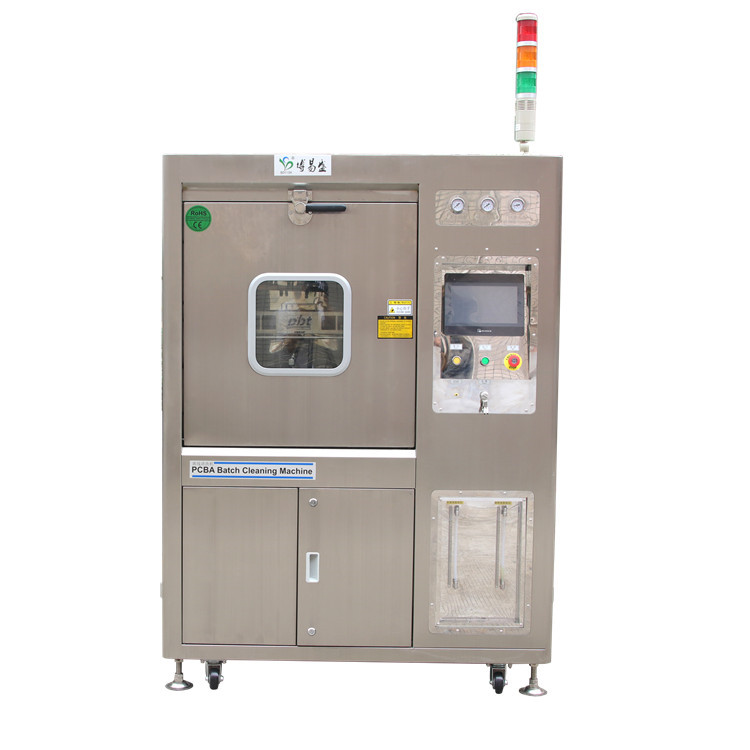

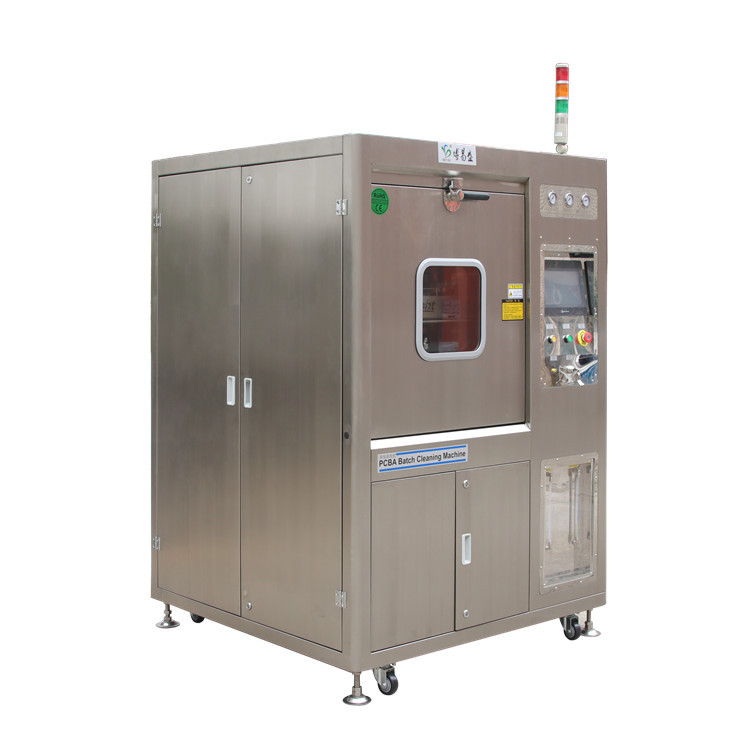

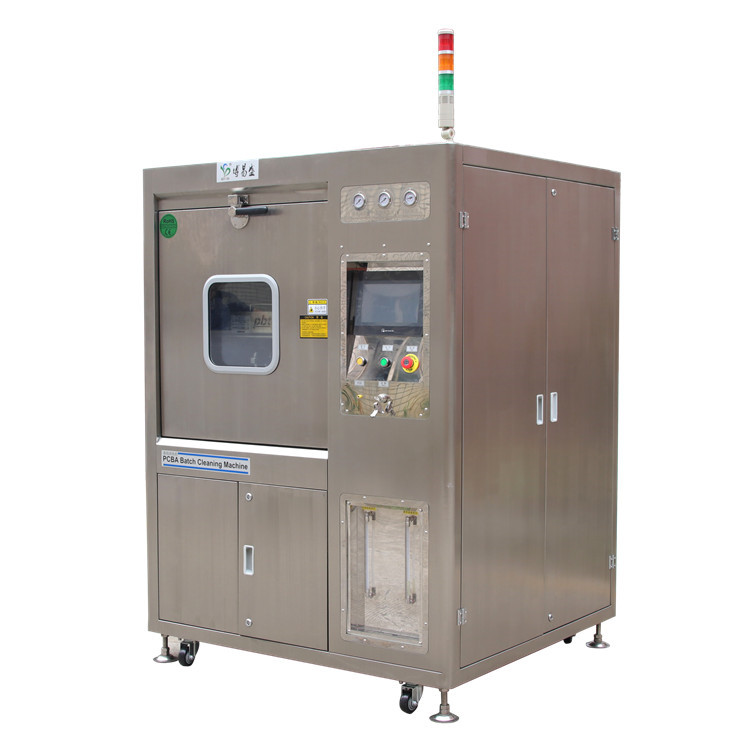

SMT PCBA Cleaner/ Cleaning Machine

Professinonal Smt Machine Manufacturer PCBA Cleaning Machine

Product Description

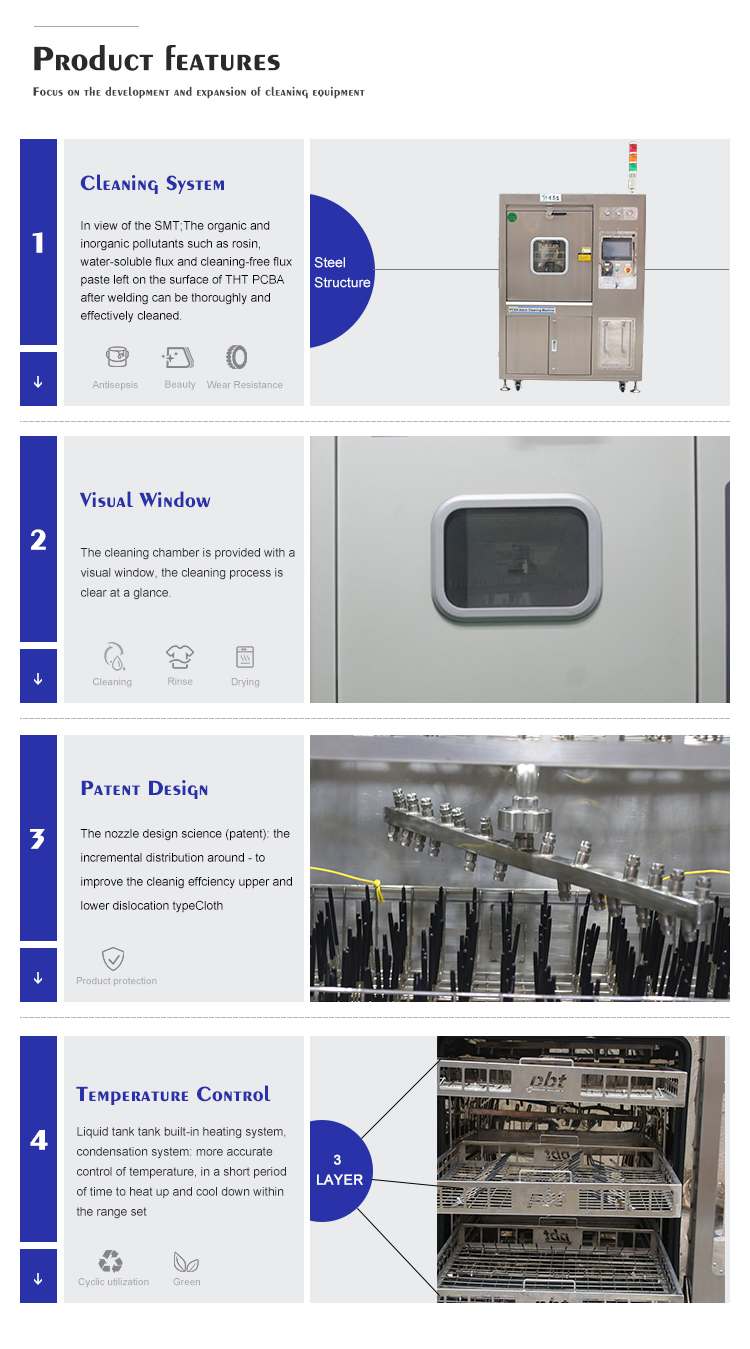

PBT-800P PCBA Cleaner Features:

1. The whole machine is made of 304 stainless steel;

2. High-pressure stainless steel centrifugal cleaning pump with adjustable spray pressure 55 ~ 75PSI;

3. Built-in heating system and 360-degree rotating spray technology;

4. Automatically add cleaning liquid, automatically compensate concentration, compatible with chemical washing and DI water washing process;

5. Nozzle pressure, filter pressure, inlet pressure, DI inlet pressure monitoring display configuration;

6, Can clean rosin flux, no-clean flux, water-soluble flux;

7, High and low level alarm function, independent control of the upper and lower spray pressure adjustment;

8. All cleaning processes can be completed automatically according to the set program, cleaning time and temperature, rinsing time, temperature and rinsing times, and hot air drying temperature;

9. Rinsing resistivity test system, real-time cleanliness detection

10. Pre-discharge filtering device, cleaning liquid recovery filtering device, accuracy 0.45UM

Applicable stencil size	1200mm(L) ×1000mm(W) ×1800mm(H)
Diluent tank capacity	62L(MAX)
Concentrate tank capacity	32L(MAX)
Spray tank capacity	16L
Cleaning mode	360° rotary high pressure cleaning fluid injection
Equipment air supply	0.45Mpa~ 0.7Mpa
Outlet size	Φ100(W)×20mm(H)
Rinsing drainage flow	40 L/Min
Chemical fluid filter	0.22μm
DI rinse filter	0.22μm
